Modular metal roofing tile
Price: CAD $

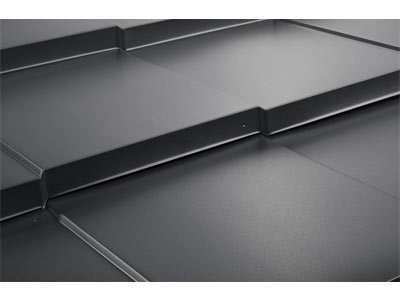

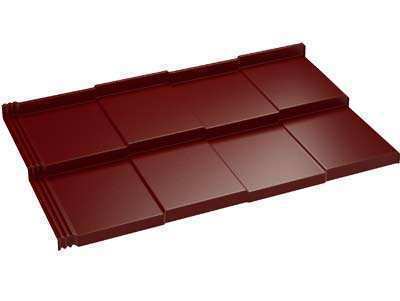

Bratex Savanna is an innovative solution that does not accept compromises - it presents a simple form in its purest form. This model is a response to the growing trend of a minimalist roof line, which works great in modern residential buildings. This is the first flat modular roof tile on the market.The colors and RAL references shown are for reference only. Real colors are available on samples from distributors.
Product description
Transverse compensation pocket
On the surface of each sheet there is an embossing that compensates for the thickness of the sheets from the previous finish. This prevents capillary water intake and is the basis for gluing the butyl gasket.
Rolled front edge
The front edge of the sheet is factory folded 180° under the bottom of the sheet, which causes additional stiffening of the edge and prevents water from being sucked in.
Butyl gasket
The integrated butyl gasket across the entire width facilitates permanent connection of the sheets and ensures full tightness. This solution made it possible to reduce the length of the overlap by 60 mm, and thus increase the length of the covering.
Longitudinal compensatory congestion
The longitudinally formed seam profile has additionally designed embossing that compensates for the thickness of the overlapping sheets.
Pen jam
The cover sheet with a rebate with a special catch element ensures quick placement of the top sheet and effective hooking it in the desired position.
Mounting strip
Wide and appropriately long 25 mm mounting holes ensure efficient and trouble-free installation of the sheets.
